Description :
a network control keyboard with decoding function. It has strong
maneuverability and effectively solves the problem of inaccurate and
inconvenient mouse click control. High-end atmosphere, unique surface
hardening can effectively prevent scratching; 5 inch LCD screen display is
excellent, image decoding experience is better.

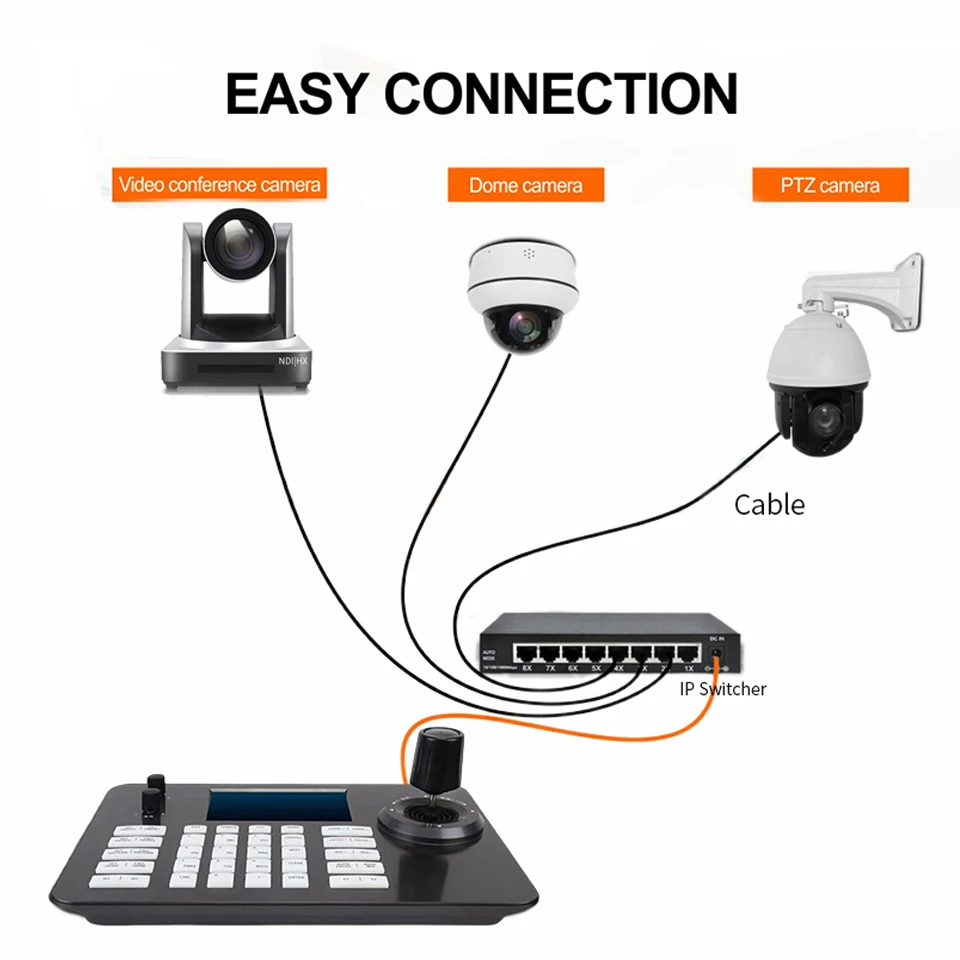

Supports the standard Onvif protocol, with good compatibility, strong
scalability, and easy operation. It only takes a few steps to achieve perfect
control of the network dome.
Feature Description:
> Support network control with independent IP address.
> Support ONVIF

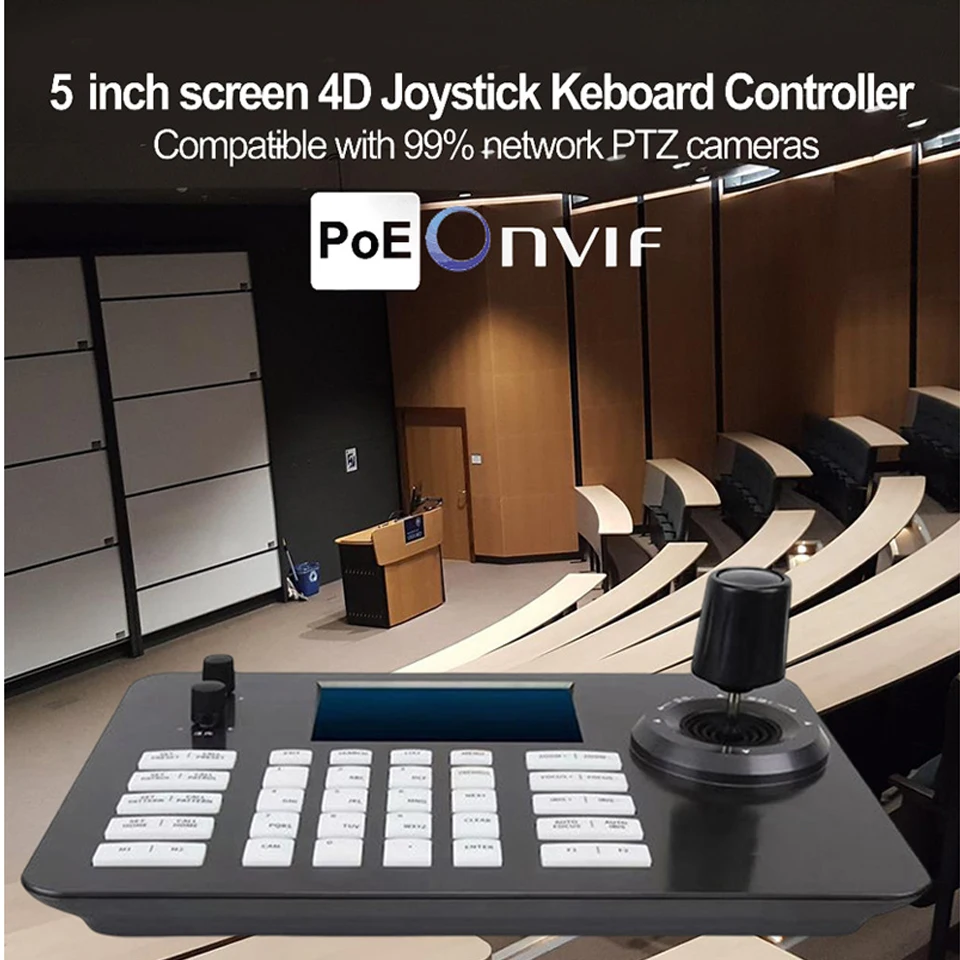

> 5 inch industrial LCD screen, resolution 800*480, image decoding, real-time monitoring.

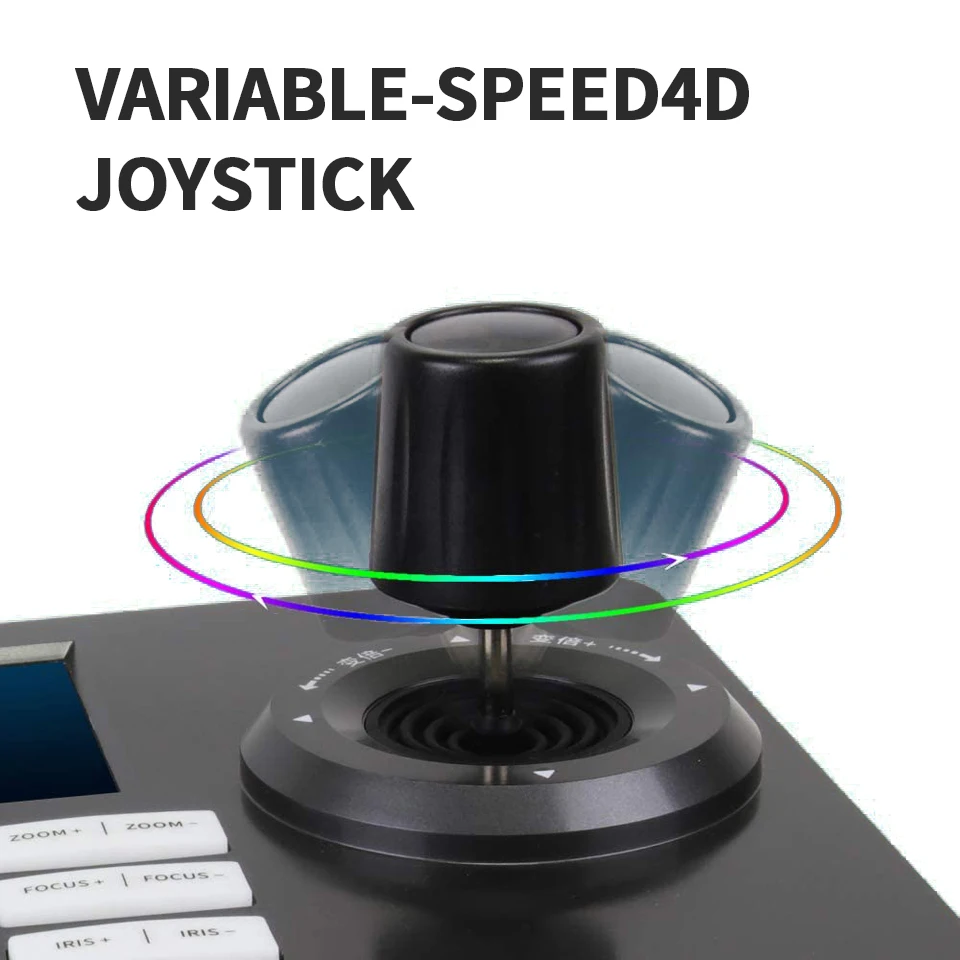

> Support 4D joystick control ptz function
> Support preset patrol pattern and AB scan
> Support IE web setting
> Support custom function buttons, add shortcut function (customized)

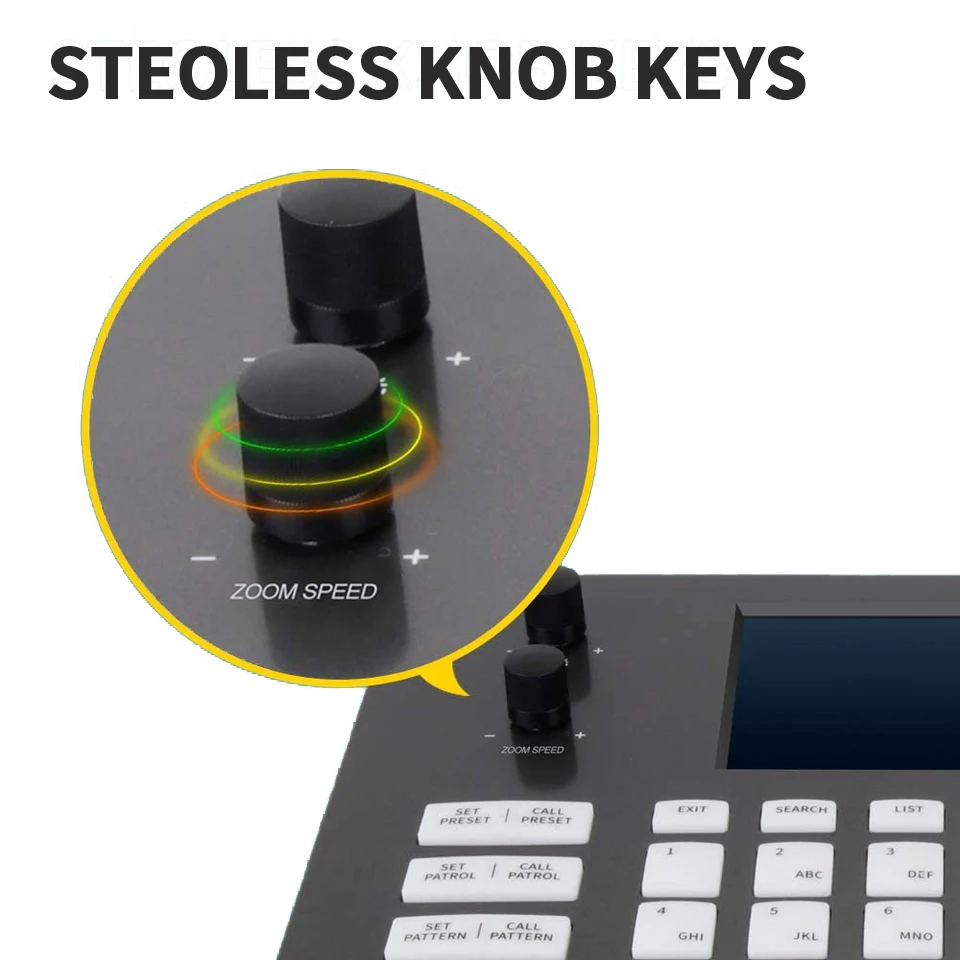

> Support Knob for zoom and control speed

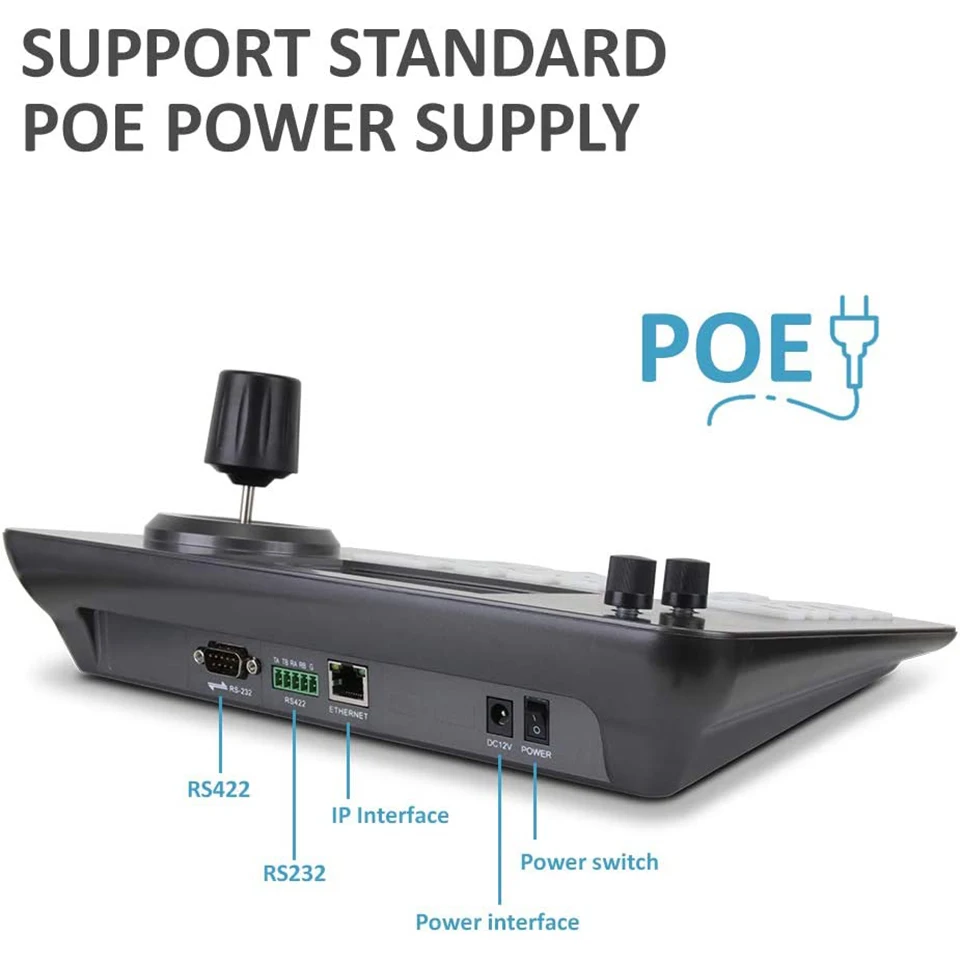

> Support POE
Module No.:
ASKB300
Application:
The E3 video decoding control keyboard can be used in various important conference venues, such as government and telecommunications departments, public security, procuratorates, courts, banks, securities, insurance, education, taxation, etc., to control cameras in a simple and fast manner.
Parameters / Model ASKB300
CHIP HIS3536DV100
SYSTEM Linux
Max equipment 999
Decoding h.265, h.264
RESOLUTION MAX 1080P for 1 channel:1920*1080@30fps
PROTOCOL Onvif
Joystick 4D
OUTPUT RS422(Reserved), RS232(Development port), RJ45

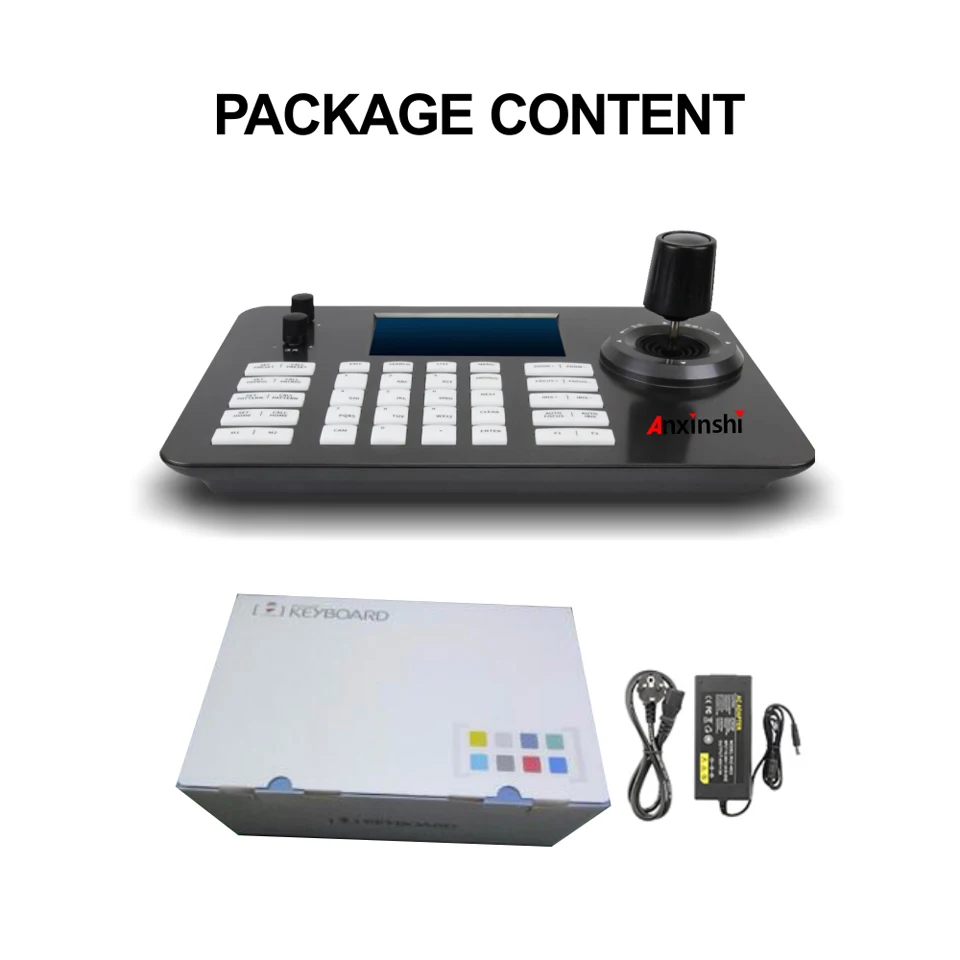

Accessories Knob, Silicone button
Beep On/off
SCREEN TFT LCD 800*480
Power consumption ≤5W
POWER DC12V-2A
Work temperature -10℃~55℃ / 14°F~131°F
Work humidity 20%~80%frostless
Storage temperature -10℃~60℃ / 14°F~140°F
Storage humidity 0~90%frostless

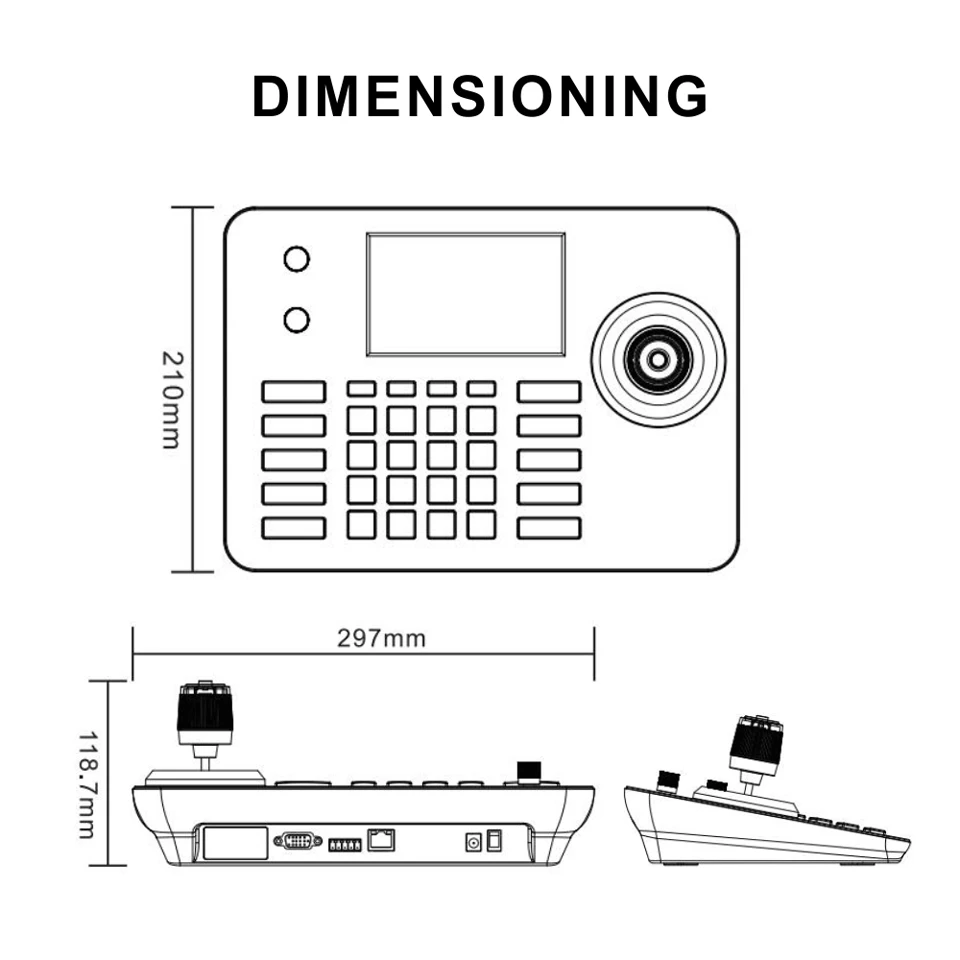

Packing size 340*268*140mm
Outer box size and specifications 553*460*350mm / 6 sets
Weight 900 G /set
