NDI Camera Main Features
Professional NDI PTZ Camera,approved by Newtek Inc.With NDI Technology,Support power, audio, control and lower-latency video with only one Ethernet cable.Easy integration with industry popular video APP (including OBS, vMix, Livestream Studio,Wirecast and more).
As a PTZ camera,supports horizontal rotation(-170° to 170°) and vertical rotation(-30° to 90°).It has multiple ways of control, such as the included IR remote controller,NDI PTZ/CGI/HTTP/Visca/Pelco-D/Pelco-P control via RS485 or RS232 or IP.Compatible with Ptzoptics App.
Is a Full HD live streaming camera and video conference camera,it can simultaneously output max 1080p@60fps video from NDI,3G-SDI,HDMI and IP streaming(MJPEG & H.264 & H.265).Support NDI, PoE(802.3af), RTSP, RTMP, SRT and other technologies,ability to support advanced features for live streaming.
Flexible and easy-to-use installation options. LINE IN audio embeded simultaneous on NDI, HDMI and IP, powered by POE or the included power adapter, and can be installed on a wall bracket, ceiling bracket, or tripod bracket.
Camera package includes: camera, adapter, power cord, remote control, Visca control cable and instruction manual
BA30N is a new design professional NDI PTZ Camera.It has 30X + 8X Zoom and 60.7 degree FOV with Panasonic's 1/2.7 inch high quality HD CMOS sensor and TAMRON Lens.Large aperture of maximum F1.8 can get more light and achieve better background blur effects, especially close-up at the telephoto.
Supports NDI,3G-SDI,HDMI and IP Streaming to output frame rate up to 60fps in 1080P.Support NDI, NDI|HX, NDI|HX2,TCP/IP,HTTP,RTSP,RTMP,Onvif,DHCP,Multicast,VISCA/Pelco-D/Pelco-P protocols etc.Features of broadcast frame rates and NDI, create more artistic possibilities.So,it is a ideal use for Live Streaming,Conference,Church,Teaching,Esports,Fitness Classes and Cooking demonstrations and more.
[Tip:Please do not modify the MAC address of the camera, which will invalidate the NDI license.]

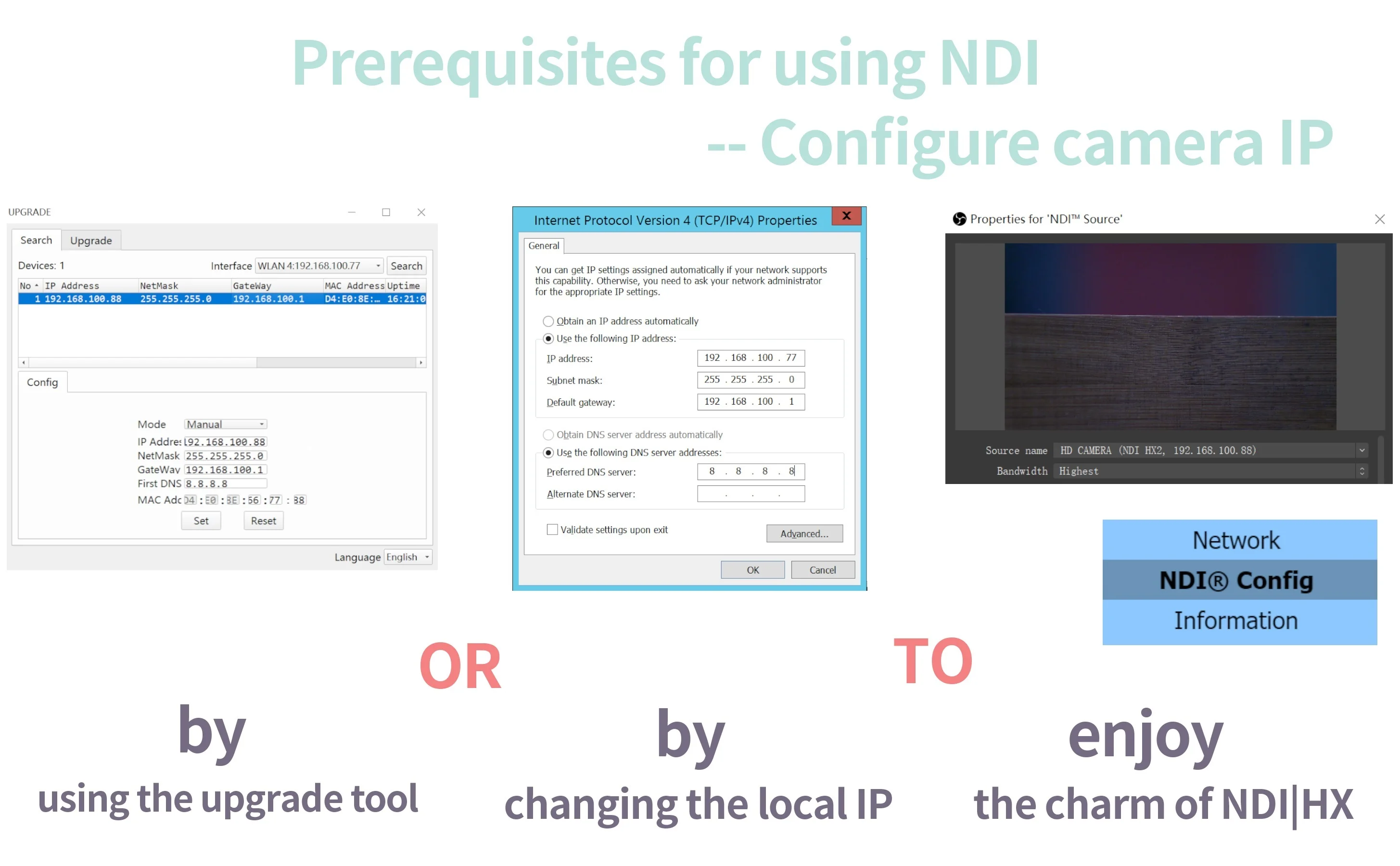

The NDI function is based on the network, so to use NDI, you must first set the camera's IP to a connectable IP (the camera's factory setting is a static IP). You can download the upgrade tool from the official website to quickly find and modify the camera ip. You can also modify the ip of the local computer to 192.168.100.xx to connect to the camera for modification. Only after configuring the IP information can you enjoy the charm of NDI.
4 Simultaneous HD Video Outputs
Simultaneously output max 1080p@60fps video from NDI, 3G-SDI, HDMI and IP streaming(MJPEG/H.264/H.265)
Live Streaming Camera
It supports H.264/H.265 video encoding and NDI, RTSP, RTMP protocols, can easily cope with various live steaming challenges
Multiple Protocol Support
Standard NDI/PoE/Onvif/VISCA/Pelco-D/Pelco-P/CGI/HTTP and etc protocols Support.
Easily controlled by IR controller, Network or serial port
NDI Support | NDI, NDI|HX, NDI|HX2, NDI PTZ |
Video Output Interface | 3G-SDI, HDMI, CVBS, IP(RJ45) |
Video Format | HD: 1080p/60, 1080p/50, 1080i/60, 1080i/50, 1080p/30, 1080p/25, 720p/60, 720p/50, 720p/30, 720p/25 SD: 480i, 576i |
Sensor | 1/2.7'', CMOS, Effective Pixel: 2.07M |
Lens | 30x,f4.42mm~132.6mm,F1.8~F2.8 |
Scanning Mode | Progressive |
Focus Mode | Auto, Manual |
Electronic Shutter | 1/30s ~ 1/10000s |
Minimum Illumination | 0.5 Lux at F1.8, AGC ON |
White Balance | Auto, 3000K/Indoor, 4000K, 5000K/Outdoor, 6500K_1, 6500K_2, 6500K_3, One Push, Manual |
Backlight Compensation | Support |
Digital Noise Reduction | 2D&3D Digital Noise Reduction |
SNR | ≥55dB |
Angle of View | Horizontal: 60.7° ~ 2.28°, Vertical: 34.1° ~ 1.28° |
H & V Flip | Support |
Video Compression | H.265/H.264/MJEPG |
Rotation Range | Horizontal: -170° ~ +170°, Vertical: -30° ~ +90° |
Speed Range | Pan: 1.7° ~ 100°/s, Tilt: 1.7° ~ 69.9°/s |
Preset function | Support |
Number of Presets | 255 |
Preset Accuracy | 0.1° |
Support Protocol Type | NDI PTZ,VISCA over IP, VISCA, Pelco-D, Pelco-P, CGI, HTTP, Onvif |

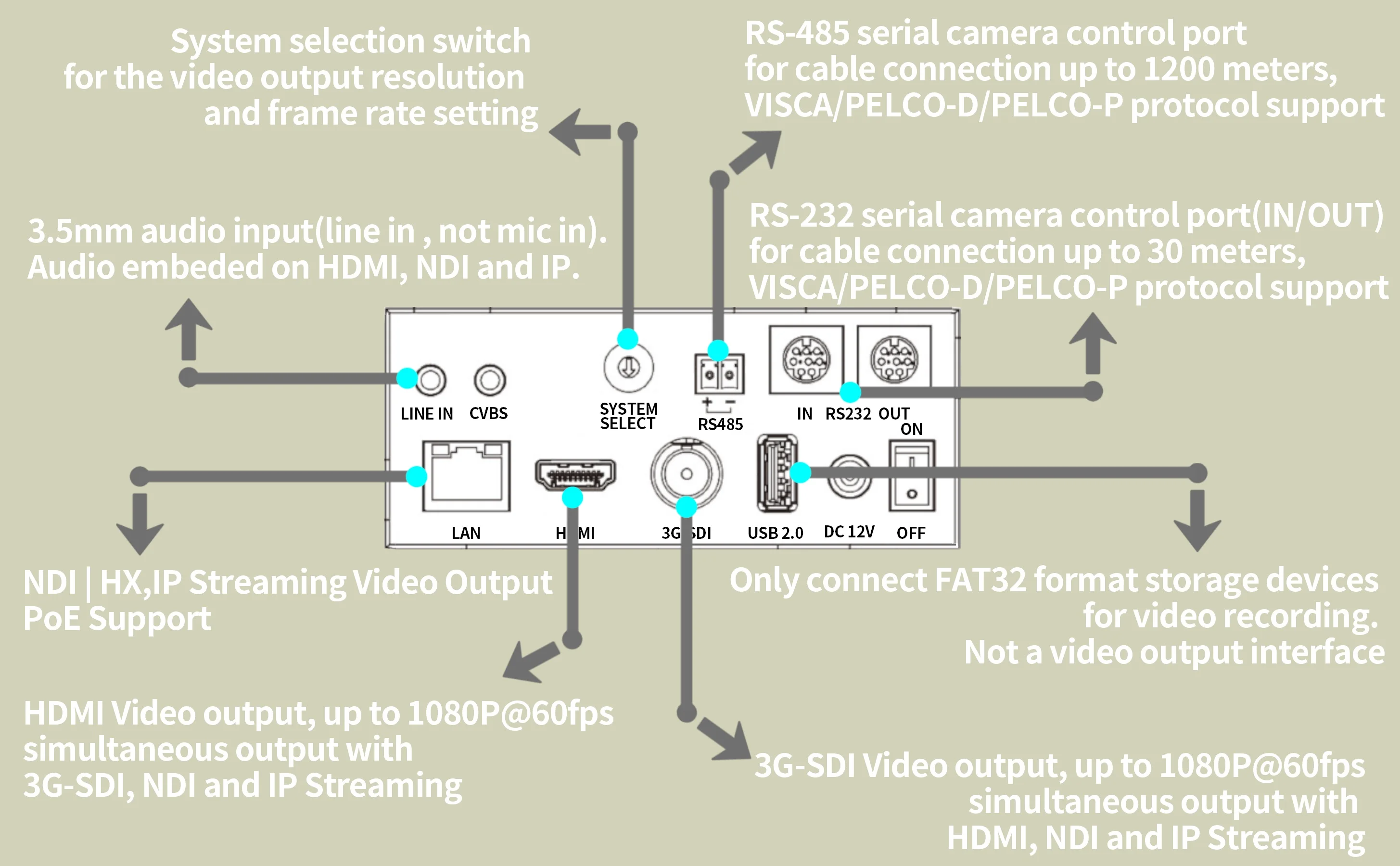

Control Signal Interface | 1xRS485(2pin Phoenix Port),1xRS232 In(8pin Min DIN),1xRS232 Out(8pin Min DIN), RJ45(IP Control) |
Power Jack | JEITA type (DC IN 12V) |
Power Consumption | 12W (Max) |
PoE | Support(802.3af) |
Operating Temperature | -10°C ~ 40°C (14°F ~ 104°F) |
Storage Temperature | -40°C ~ 60°C (-40°F ~ 140°F) |
Local Storage | Support(Flash disk via USB, FAT32 format) |
Audio Interface | 1x3.5mm Audio Interface,Line In |
Audio Compression | AAC |
MTBF | >30000h |
SDI Camera Main Features
●20x Optical + 16x Digital Zoom
High quality super telephoto lens, 20x optical zoom, and 16x digital zoom.
●H.265 Support
H.265 ecoding, enabling transmit full HD 1080p video stream by ultra-low bandwidth.
●1080P Full HD
Apply Panasonic's high quality HD CMOS sensors of 1/2.7 inch, 2.07 million effective pixels, so as to reach maximum 1920 x 1080 resolution and achieve quality image.
●Ultra-high Frame Rate
The output frame rate up to 60fps in 1080P.
●AAC Audio Encoding
Support AAC audio encoding, better sound quality and smaller bandwidth.
●Local Storage
Support U disk local storage, local recording directly without NVR.
●Low-light
High quality CMOS sensor and 2D/3D noise reduction can reduce image noise.The Image is still clear and sharp even in low light enviroment, and the SNR is high more than 55dB.
●Multiple Interfaces
Support HDMI , 3G-SDI interface, effective transmission distance up to 150 meters (under 1080p30). HDMI, SDI, Network can output at the same time. It also support CVBS interface.
●Remote Control
Using R232 and RS485 interface, all the parameters of the camera can be controled remotely.
SDI Camera |
Video System | HD: 1080p/60, 1080p/50, 1080i/60, 1080i/50, 1080p/30, 1080p/25, 720p/60, 720p/50, 720p/30, 720p/25, 640x480p/240 SD: 480i, 576i |
Sensor | 1/2.7'', CMOS, Effective Pixel: 2.07M |
Scanning Mode | Progressive |
Lens | 20x, f4.42mm~88.5mm, F1.8 ~ F2.8 |
Digital Zoom | 16x |
Minimal Illumination | 0.5 Lux @ (F1.8, AGC ON) |
Shutter | 1/30s ~ 1/10000s |
White Balance | Auto, 3000K/Indoor, 4000K, 5000K/Outdoor, 6500K_1, 6500K_2, 6500K_3, One Push, Manual |
Backlight Compensation | Support |
Digital Noise Reduction | 2D&3D Digital Noise Reduction |
Video S/N | ≥55dB |
Horizontal Angle of View | 60.7° ~ 2.28° |
Vertical Angle of View | 34.1° ~ 1.28° |
Horizontal Rotation Range | ±170° |
Vertical Rotation Range | -30° ~ +90° |
Pan Speed Range | 1.7° ~ 100°/s |
Tilt Speed Range | 1.7° ~ 69.9°/s |
H & V Flip | Support |
Image Freeze | Support |
PoE | Support (802.3af) |
Local Storage | Support |
Number of Preset | 255 |
Preset Accuracy | 0.1° |
IPC Features |
Video Compression | H.265 / H.264 / MJEPG |
Video Stream | Main Stream, Sub Stream |
Main Stream Resolution | 1920x1080, 1280x720, 1024x576 |
Sub Stream Resolution | 720x576, 720x480, 320x240 |
Video Bit Rate | 128Kbps ~ 8192Kbps |
Bit Rate Type | Variable Rate, Fixed Rate |
Frame Rate | 50Hz: 1fps ~ 50fps, 60Hz: 1fps ~ 60fps |
Audio Compression | AAC |
Audio Bit Rate | 96Kbps, 128Kbps, 256Kbps |
Support protocols | TCP/IP, HTTP, RTSP, RTMP, Onvif, DHCP, Multicast, etc. |
Input/Output Interface |
HD Output | 1xHDMI: Version 1.3 |
1x3G-SDI: BNC type, 800mVp-p, 75Ω, Along to SMPTE 424M standard |
SD Output | 1xCVBS: 3.5mm mini jack, 1Vp-p, 75Ω |
Network Interface | 1xRJ45: 10M/100M/1000M Ethernet Interface,Support PoE power supply |
Audio Interface | 1-ch: 3.5mm Audio Interface, Line In |
USB | 1xUSB2.0: Type A female jack |
Communication Interface | 1xRS232 In: 8pin Min DIN, Max Distance: 30m, Protocol: VISCA/Pelco-D/Pelco-P |
1xRS232 Out: 8pin Min DIN, Max Distance: 30m, Protocol: VISCA network use only |
1xRS485: 2pin Phoenix Port, Max Distance: 1200m, Protocol: VISCA/Pelco-D/Pelco-P |
Power Jack | JEITA type (DC IN 12V) |
Generic Specification |
Input Voltage | DC 12V |
Current Consumption | 1.0A (Max) |
Operating Temperature | -10°C ~ 40°C (14°F ~ 104°F) |
Storage Temperature | -40°C ~ 60°C (-40°F ~ 140°F) |
Power Consumption | 12W (Max) |
Size | 169mm x 142mm x 164mm |
Net Weight | 1.35Kg (3.0lb) |
Sensor Size (inches)
1/2.71
High Definition Support
1080P (Full-HD)
