Features:

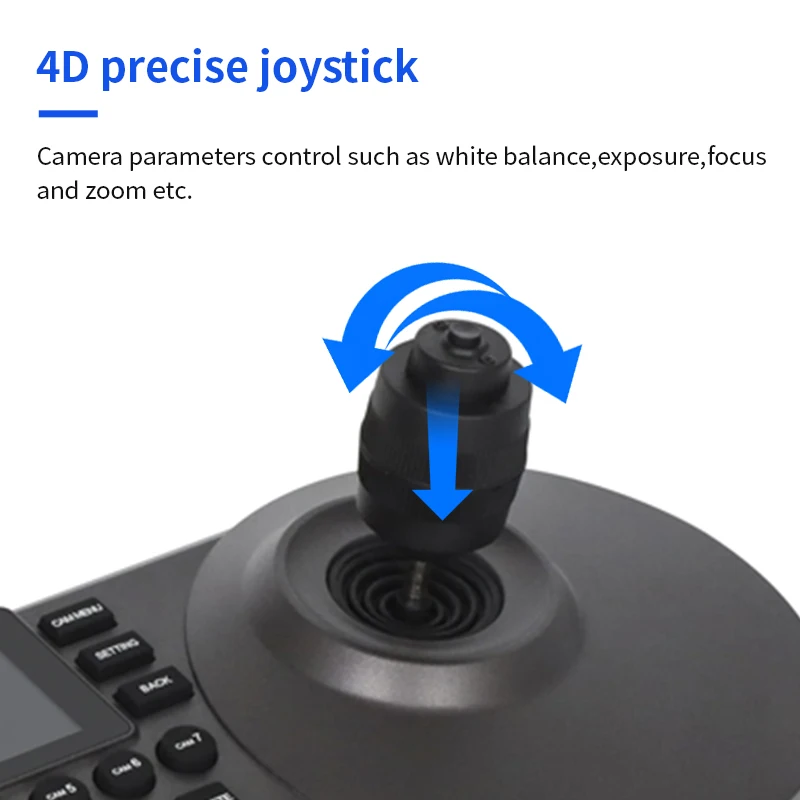

4D precision joystick+three -dimensional sediment knob+ergonomic zoom key
The key parameters such as white balance, exposure, focus, and change of camera;

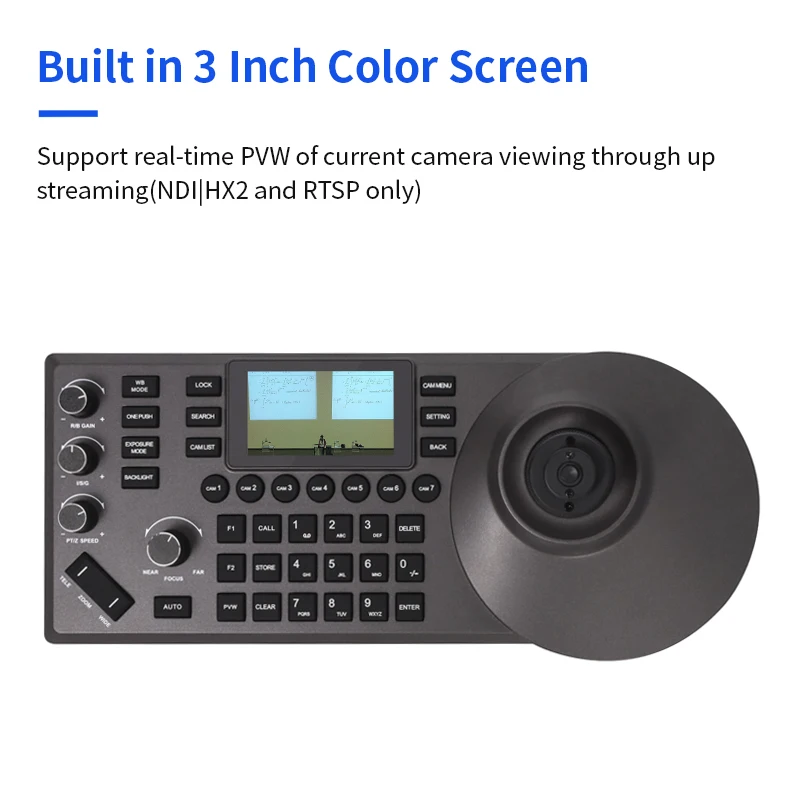

Built -in 3 -inch color screen
Support real -time preview of the current camera screen through the streaming protocol (only NDI HX2 and RTSP);
Support 7 cameras to select shortcut keys
You can quickly set up 7 camera shortcut keys according to demand, and support up to 1,000 camera information store;
New upgrade UI operation interface
Display the main parameters of various cameras, and the personalized interface style will be adjusted at will;

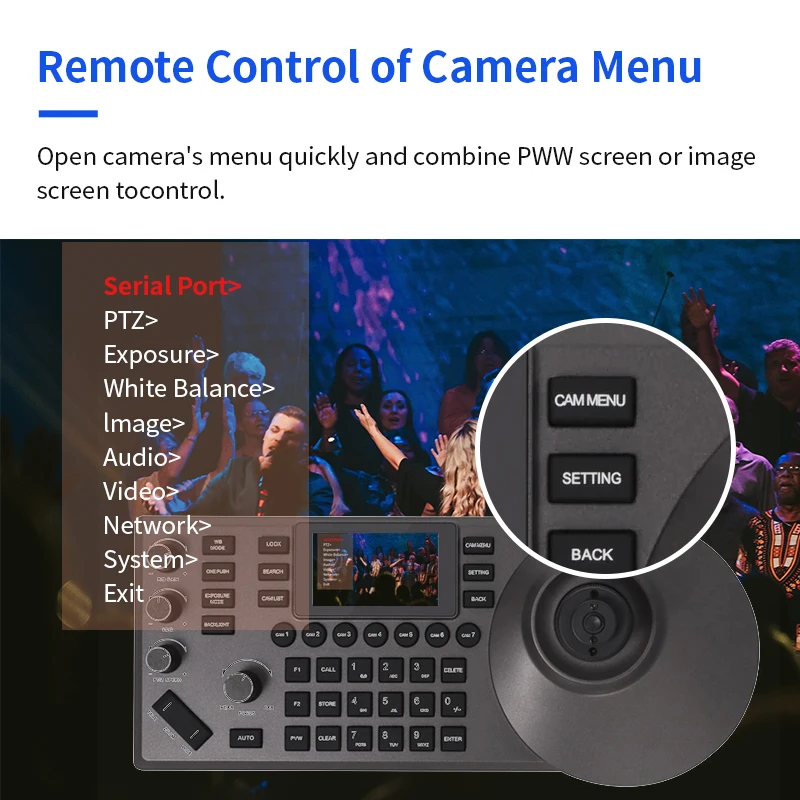

PTZ camera menu remote operation
Quickly open the current camera menu, combine the preview screen or screen screen to achieve functional operation;
White and red two -color backlight silicone button
High -quality silicone, excellent feel, support white and red backlight, and can also be operated smoothly in the
environment of insufficient light. Support letters and commonly used character inputs.
Support one button lock button
One key locks the keyboard button to effectively reduce the misunderstanding;

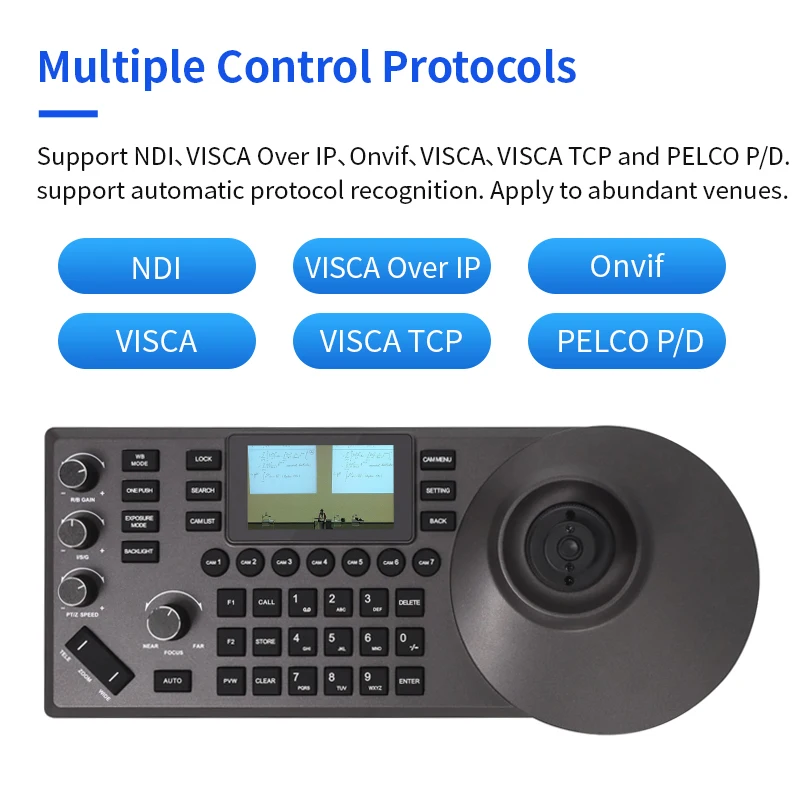

Multi -control protocol, applicable to most scenarios
Support Visca, Visca Over IP, Visca TCP, Pelco P/D, onvif, and NDI control protocols to support automatic recognition protocols.

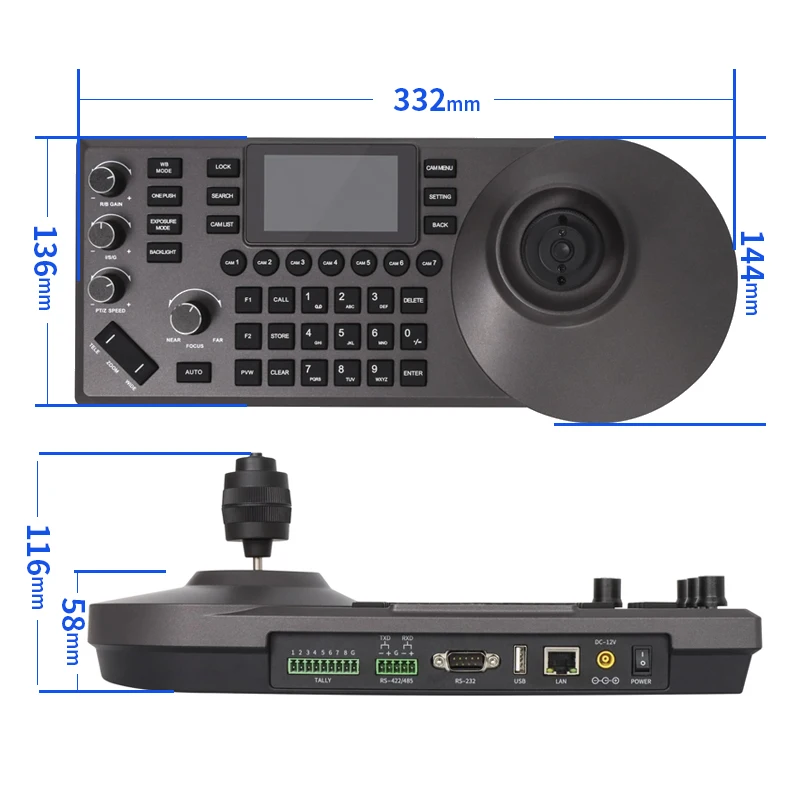

Rich interface, multiple connection methods
External RS-232, RS422/485 serial port, and RJ45 network interface, network interface supports the POE function to reduce wiring trouble;
External TALLY interface
Support up to 8 TALLY channels
Support custom keys
Support F1 and F2 custom keys, and the best operation function can be set according to user needs.
